What is an IC Chip & What Role Does it Play in LED Displays?

Understanding IC Chips and Their Role in LED Display Technology

When it comes to LED display technology, much of the magic happens behind the scenes. LED modules are at the core of any display, but the true unsung hero (and often overlooked) within these modules is the IC chip (Integrated Circuit).

These tiny but powerful components play a critical role in determining the performance of your display in terms of greyscale, scan rate, and refresh rate and colour performance. In this article, we'll dive deep into what IC chips do, and why they are so essential in creating smooth, vibrant, and high-quality LED displays.

What Is an IC Chip in LED Display Modules?

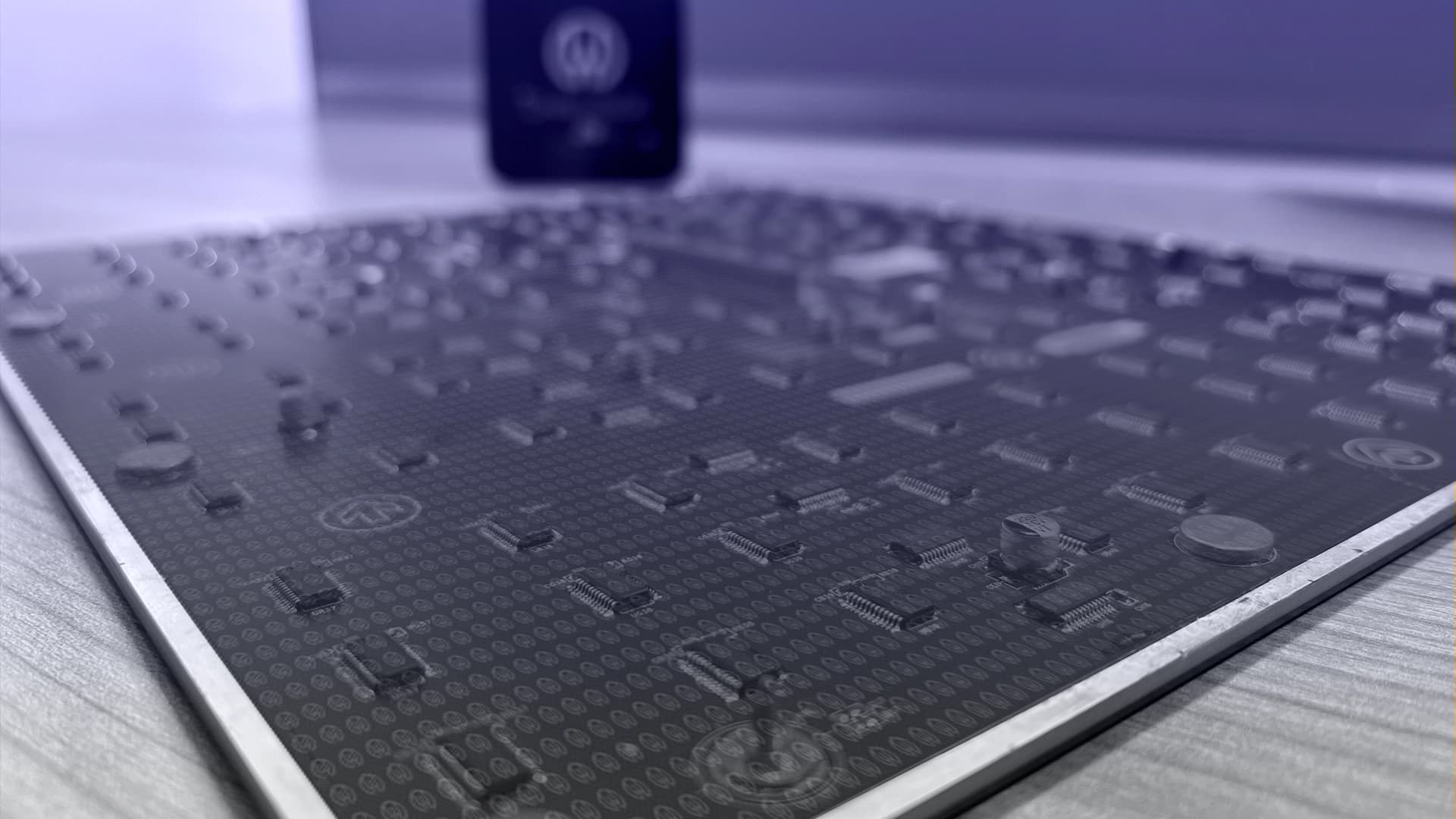

An IC chip, or Integrated Circuit chip, in the context of LED displays, acts as the brain of the LED module. It controls how the individual LEDs are powered and lit, managing the data that comes into the display and ensuring it appears correctly. Simply put, the IC chip is responsible for driving the LEDs to behave the way they should, including handling colour reproduction, brightness, and the timing of each pixel's illumination.

LED modules in modern displays use a variety of IC chips, depending on the desired functionality. Let’s explore some of the main tasks these chips handle and how they influence the display’s performance.

Greyscale: Enhancing Colour Depth

Greyscale refers to the number of shades of colour that a display can produce between its brightest and darkest states. In other words, greyscale controls how smoothly a display transitions between colour values, such as from black to white or dark red to bright red.

For example, a display with 8-bit greyscale can show 256 different shades per colour channel, while a 16-bit greyscale display can show a much finer range, offering 65,536 different shades. This translates into more accurate colour representation and smoother gradients on your display, making images and videos appear richer and more realistic.

IC chips govern greyscale by controlling Pulse Width Modulation (PWM) of each LED. PWM is a technique where the chip rapidly switches an LED on and off to simulate different brightness levels. This method provides the best performance for high refresh rates and better greyscale performance. However, choosing the right PWM and IC chip specifications is essential, as different applications require varying levels of precision and performance.

The more shades or steps the IC chip can handle, the higher the greyscale, and the better the colour depth and image quality. It's important to remember that choosing the right IC chip and PWM configuration for your specific display needs is crucial. A higher greyscale depth can significantly enhance the visual quality, but it’s not always necessary for every application.

Scan Rate: Managing LED Activation

The scan rate refers to how an LED module drives its rows or columns of pixels. LED displays don’t typically drive each LED independently all the time. Instead, to reduce the number of control circuits and save on hardware, the IC chip scans through sections of the display, activating groups of pixels at a time. This process happens so quickly that the human eye perceives it as a continuous image.

There are different types of scan rates, like 1/16 scan or 1/8 scan, which define how many LEDs are powered at once. For example, in a 1/16 scan configuration, one-sixteenth of the LEDs are lit at any given time, with the IC chip cycling through each set of LEDs very rapidly.

A lower scan rate (like 1/4) means fewer LEDs are scanned simultaneously, which generally results in higher brightness because each LED is receiving more power. On the other hand, higher scan rates (like 1/32) reduce power consumption and allow for smaller, more energy-efficient designs, but can impact brightness and overall display performance.

However, it’s important to note that a higher scan rate is not always necessary, especially if the display doesn't require the highest levels of refresh rate or greyscale. Choosing the right scan rate depends on your specific display needs. For example, a lower scan rate can help improve brightness in outdoor settings where visibility is crucial, whereas higher scan rates can be more appropriate for power-efficient indoor applications.

Refresh Rate: Reducing Flicker

The refresh rate is the number of times per second that the display’s image is refreshed. It is measured in Hertz (Hz). A higher refresh rate ensures smoother motion and prevents flickering, which can be particularly important when capturing content on camera, such as for live events or broadcasting.

For example, a display with a 1920Hz refresh rate updates the image 1920 times per second, whereas a display with 3840Hz refresh rate provides even smoother visuals. This is critical for avoiding visual artefacts, especially when fast-moving content or camera equipment is involved.

However, higher refresh rates also have a trade-off. Rapidly turning LEDs on and off can reduce the overall lifespan of the display. For applications where high refresh rates aren't necessary, such as static images or simple signage, choosing a lower refresh rate and scan rate can extend the display's longevity. IC chips directly manage the refresh rate by controlling how quickly display data is processed and sent to each pixel.

Choosing a high refresh rate is essential when high-speed content or live broadcasting is involved, but it's equally important to assess whether your specific display demands such performance.

Which IC Chips Govern These Aspects?

Different types of IC chips are designed for various purposes, and some are specialized in controlling greyscale, scan rates, and refresh rates.

• Greyscale Control Chips: Chips such as the MBI5124 or MBI5153 are known for delivering excellent greyscale performance. These chips are often used in LED displays that prioritize smooth colour transitions and depth, making them ideal for applications where colour accuracy is essential, such as in advertising or digital signage.

• Scan Rate Control Chips: IC chips like the TLC5958 or ICN2038 focus on managing scan rates efficiently. These chips are optimized for ensuring a balanced trade-off between power consumption and brightness, making them suitable for outdoor displays or large-scale installations.

• High Refresh Rate Chips: For LED displays that need to eliminate flicker for broadcast or high-speed content, chips like the ICN2053 or MBI5252 excel. These chips are built to handle high-speed data processing, providing higher refresh rates that are essential in live event streaming or sports arenas.

Conclusion: Why IC Chips Matter in LED Display Technology

IC chips are the backbone of modern LED display technology, and their impact on a display's greyscale, scan rate, and refresh rate is profound. By understanding the role these chips play, you can make more informed decisions when selecting LED displays for various applications, from commercial signage to live event broadcasting.

It's crucial to select the right IC chip and product specifications to match your unique display needs. Whether you need smoother colour transitions, a flicker-free experience, or high brightness, the right IC chips can make all the difference.

As the LED industry continues to evolve, advancements in IC chip technology will further enhance the performance of displays, offering even higher resolution, faster refresh rates, and better overall image quality. Stay tuned to LED Insights for more updates on how these technologies continue to shape the future of display technology!

As always, the team at LED Studio are here to help you build a compressive LED display specification, so please get in touch if you need assistance.
